Copenhagen Nanosystems

NanoCuvette™ One

NanoCuvette™ One

Regular price 249,00 DKK
Regular price Sale price 249,00 DKK
Sale Sold out
Shipping calculated at checkout.
Pack
Beam Height

Micro-volume and refractometry using UV-Vis spectrophotometer.

NanoCuvette™ One is an innovative smart cuvette that transforms your existing UV-Vis spectrophotometer into a powerful tool for precise micro-volume and surface refractive index measurements with many applications. Achieve high accuracy in your protein and sample analyses with minimal effort at an affordable price.


FOR RESEARCH USE ONLY. NOT FOR DIAGNOSTICS.
View full details

NanoCuvette™ One

Product information

DESCRIPTION

NanoCuvette™ One revolutionizes your existing UV-Vis spectrophotometer, allowing for advanced micro-volume and surface refractive index measurements including protein quantification. This semi-disposable cuvette is perfect for QC, kinetics, and analyzing small volume samples without needing extensive sample preparation. Designed for education, research, and industry applications, it offers unparalleled versatility and performance at an affordable price.

FUNCTIONALITY

  • Easy to use: Designed for laboratory users at all educational levels from high school to university.
  • Examples of use cases: Refractive index, concentrations and micro-volume measurements of both liquids, sugars, proteins, antibodies, and as material parameter input in particle size analysis studies.
  • Universal Compatibility: Works seamlessly with many UV-Vis spectrophotometers, see complete list in our database.
  • Precision & Accuracy: Minimizes errors related to cleaning, pipetting, and data transcription.
  • Wide Measurement Range: Measures surface refractive index from 1.0 to 1.6 nD and absorbance from 300 to 1100 nm.

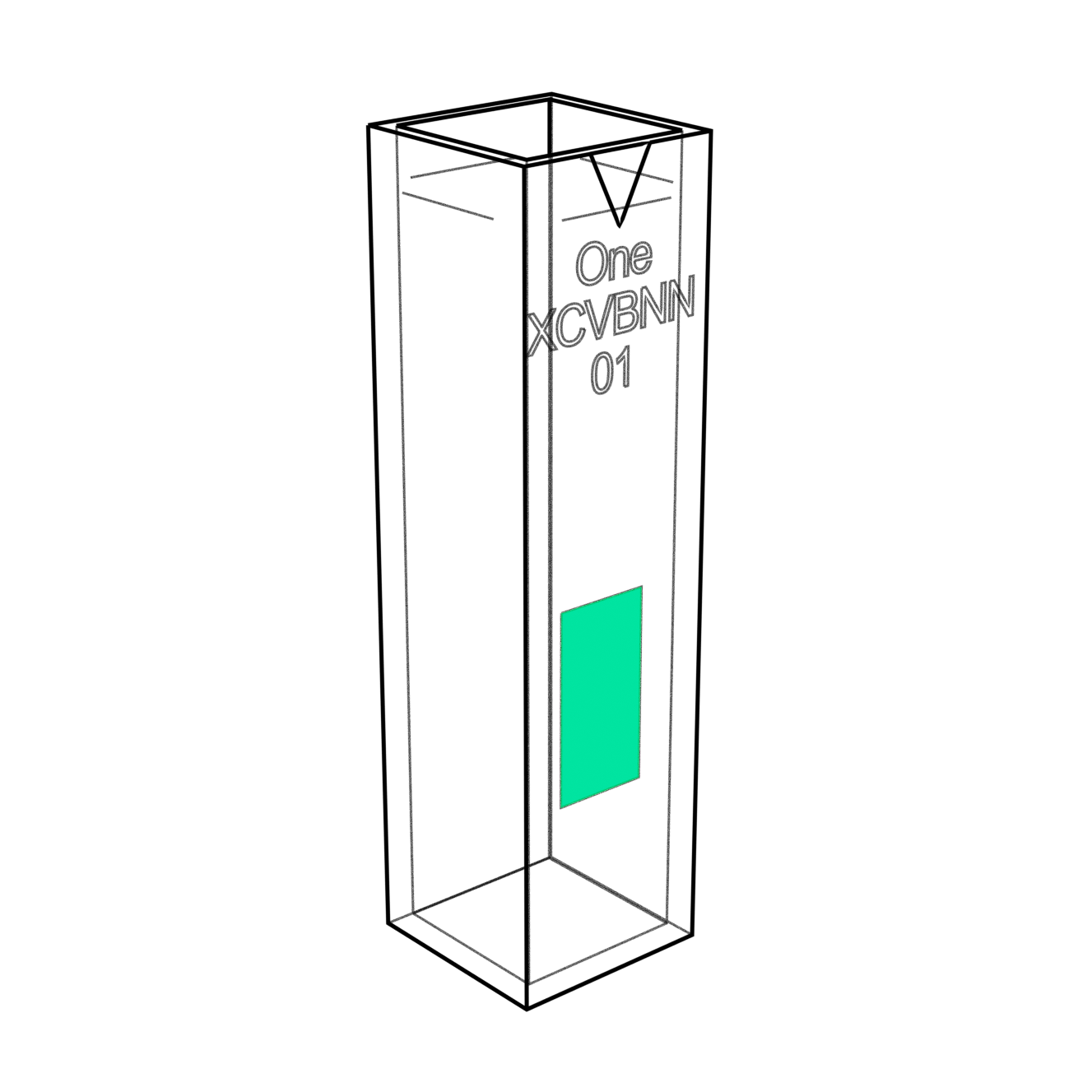

  • Surface Refractive Index Measurement: The refractive index is measured via a photonic crystal region on the inside of the cuvette wall exhibiting sharp spectral resonances that change resonance wavelengths according to changes in surface refractive index. Software and calibrations are used to convert wavelength changes in absorbance spectra into refractive index.
  • Traceable Results: Each cuvette has a unique ID for easy tracking and online calibration.
  • Reusable: Use up to 50 times with appropriate cleaning protocols.

SPECIFICATIONS

Sample Specifications:

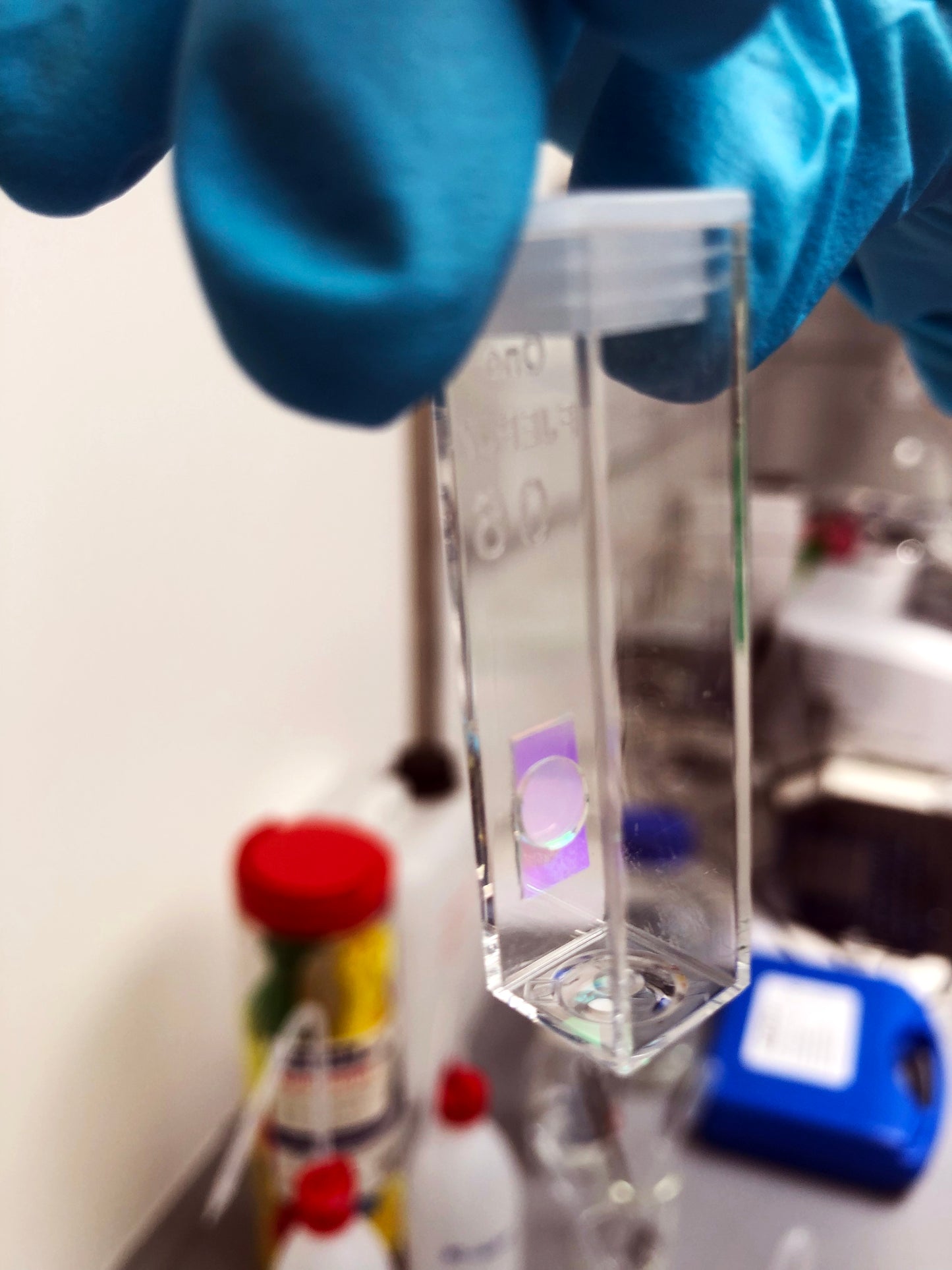

  • Min. Sample Volume: 0.5 µL in droplet mode
  • Max. Sample Volume: 4.0 mL

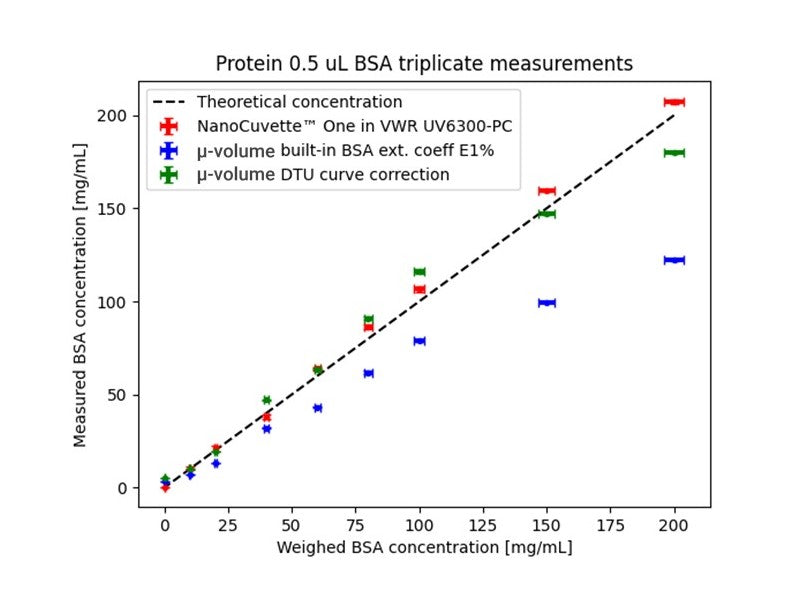

  • Protein Concentrations: 0.2 to 300 mg/mL

Measurement Specifications:

  • Measurement Capabilities: Measures both surface refractive index and absorbance using the software SpectroWorks™.
  • Min. Absorbance Wavelength: 300 nm
  • Refractive Index detection: Photonic crystals exhibiting sharp spectral resonances with changing resonance wavelengths according to changes in surface refractive index
  • Refractive Index Type (Bulk/Surface): Surface, below 50 nm.
  • Refractive Index Wavelength: 589 nm
  • Refractive Index Range: 1.0 to 1.6 nD
  • Refractive Index Accuracy: Between 10^(-3) and 10^(-6) RIU depending on settings and spectrophotometer optics
  • Supported Beam Heights (z-height): 8.5, 15.0 - 20.0 mm

Cuvette Specifications:

  • Outer Cuvette Dimensions: 12 x 12 x 45 mm
  • Optical Path Length: 10 mm
  • Cuvette Material: PMMA/Acrylic
  • Photonic crystal design and material(s): Proprietary multilayer design based on nanostructured layers of polymeric materials, amorphous titanium dioxide and perfluorodecyltrichlorosilane anti-sticking coating

Packaging Specifications:

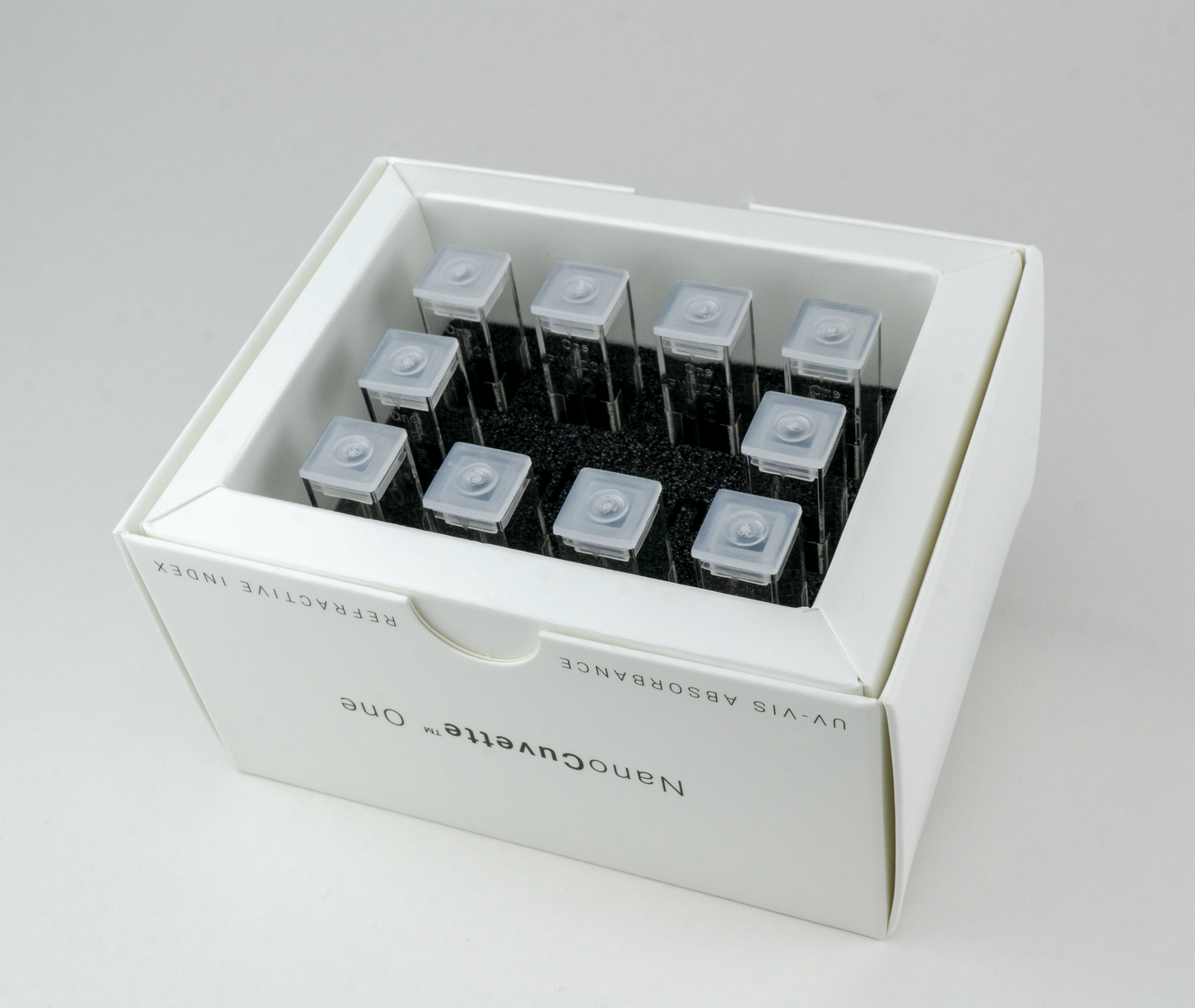

  • Package Dimensions: Single 54 x 54 x 65 mm, Box of ten 115 x 95 x 62 mm.
  • Package Weight: 0.07 kg (box of ten)

RESOURCES

FOR RESEARCH USE ONLY. NOT FOR DIAGNOSTICS.
